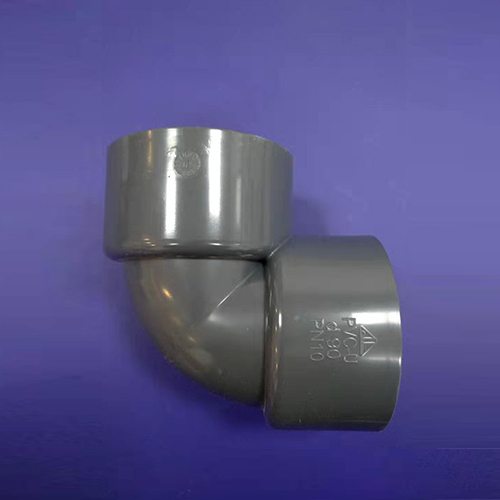

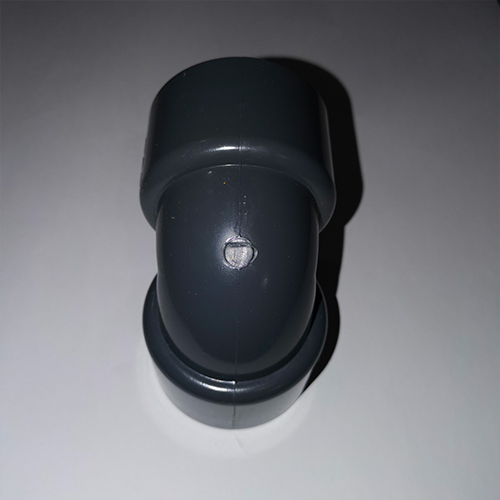

90°弯头
来源：本站 作者：admin 栏目：环琪塑胶管件 发布时间：2020-01-03 07:35:03

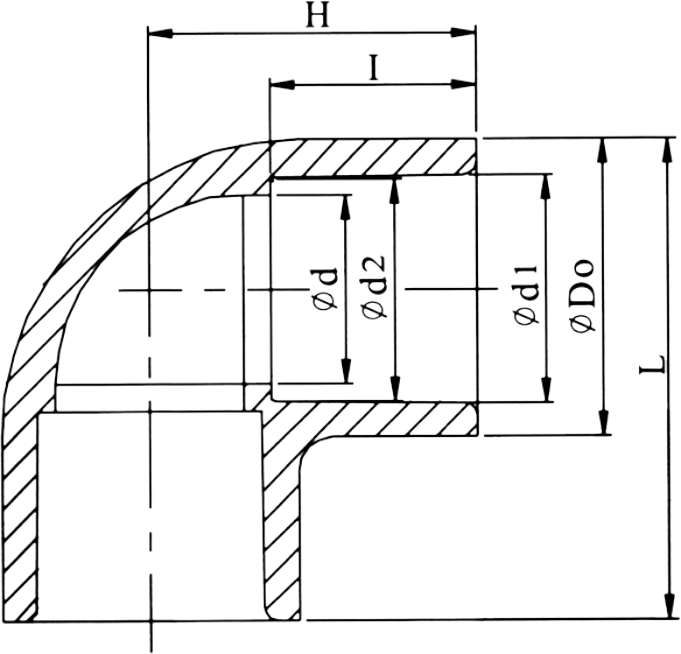

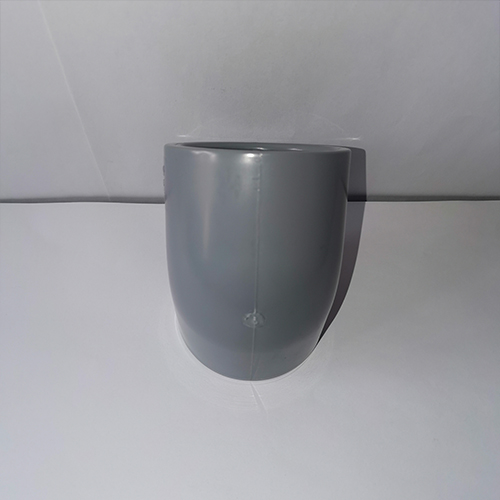

90弯头 此图为 SCH80标准仅供参考 CH80标准 Outside Dia Socket Type Structural Diameter Size Do d1 d2 I d 1/2 29 21.54 21.23 24.22 16 3/4 35 26.87 26.57 27.40 22 1 44 33.66 33.27 30.58 28 1-1/4 54 42.42 42.04 34.75 35 1-1/2 60 48....

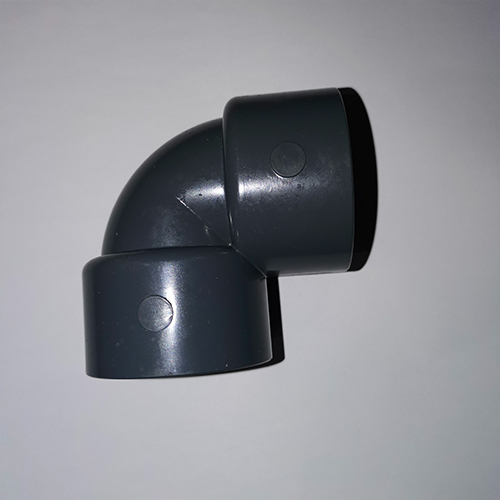

90°弯头
此图为 SCH80标准仅供参考
CH80标准
|
|
Outside Dia
|
Socket Type
|
Structural Diameter
|
|
Size
|
Do
|
d1
|
d2
|
I
|
d
|
|
1/2"
|
29
|
21.54
|
21.23
|
24.22
|
16
|
|
3/4"
|
35
|
26.87
|
26.57
|
27.40
|
22
|
|
1"
|
44
|
33.66
|
33.27
|
30.58
|
28
|
|
1-1/4"
|
54
|
42.42
|
42.04
|
34.75
|
35
|
|
1-1/2"
|
60
|
48.56
|
48.11
|
37.93
|
43
|
|
2"
|
73
|
60.63
|
60.17
|
41.10
|
54
|
|
2-1/2"
|
88
|
73.38
|
72.85
|
47.45
|
65
|
|
3"
|
105
|
89.31
|
88.7
|
50.63
|
80
|
|
4"
|
132
|
114.80
|
114.10
|
60.15
|
100
|
|
6"
|
191
|
168.83
|
168
|
79.2
|
150
|
|
8"
|
246
|
219.84
|
218.69
|
104.60
|
200
|
|
10"
|
304
|
273.81
|
272.67
|
130.00
|
240
|
|
|
|
|
|

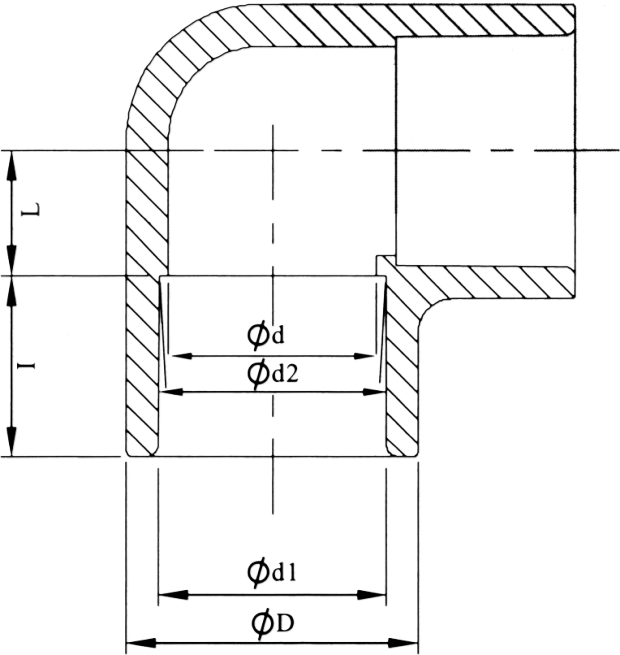

DIN标准
|
|
Outside Dia
|
Socket Type
|
Structural Diameter
|
|
Size
|
Do
|
d1
|
I
|
d
|
|
1/2"
|
27
|
20
|
16
|
11
|
|
3/4"
|
33
|
25
|
19
|
13.5
|
|
1"
|
41.5
|
32
|
22
|
17
|
|
1-1/4"
|
51
|
40
|
25.5
|
21
|
|
1-1/2"
|
61.3
|
50
|
31
|
26
|
|
2"
|
77.5
|
63
|
37.5
|
32.5
|
|
2-1/2"
|
92
|
75
|
43
|
38.5
|
|
3"
|
110
|
90
|
50
|
46
|
|
4"
|
126.7
|
110
|
60.5
|
56
|
|
