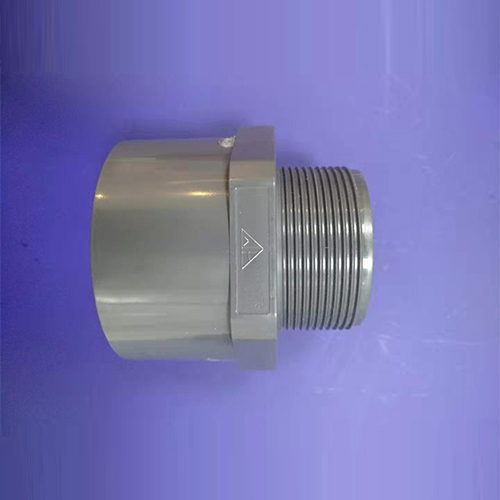

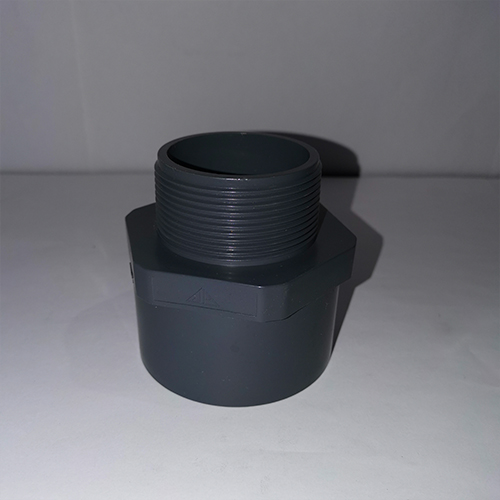

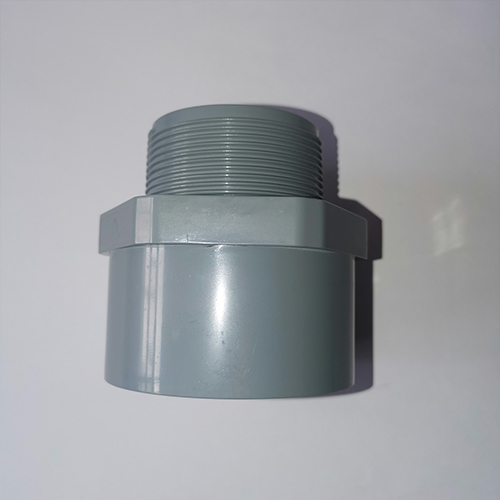

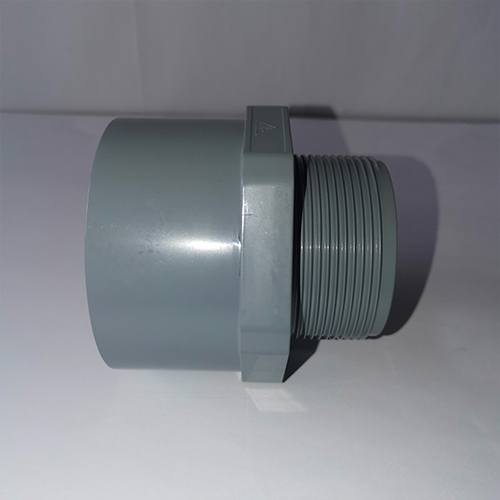

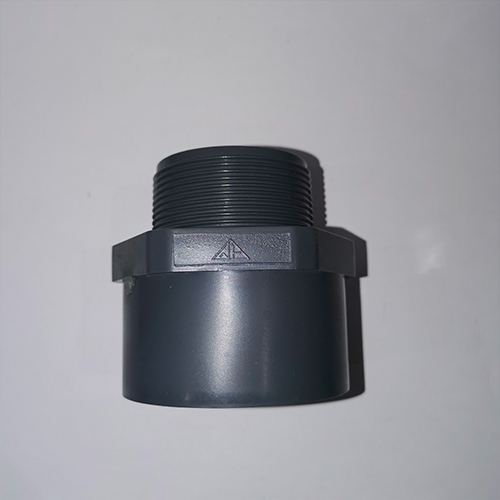

外丝
来源：本站 作者：admin 栏目：环琪塑胶管件 发布时间：2020-01-03 07:50:54
外丝 产品数据 Nominal Outside Dia Socket Type Structural Diameter Size Do d1 d2 I d L NPT （牙 / 寸 1/2 30.5 21.54 21.23 24.22 14 50 14 3/4 35 26.87 26.57 27.40 19 50 14 1 44 33.66 33.27 30.58 24 59 11.5 1-1/4 54 42.42 42.04 34.75...
|
|
|

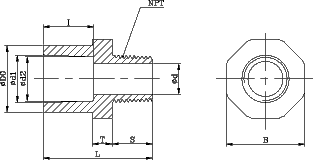

产品数据
Nominal |
Outside Dia |
Socket Type |
Structural Diameter |
Size |
Do |
d1 |
d2 |
I |
d |
L |
NPT （牙 / 寸 |
1/2" |
30.5 |
21.54 |
21.23 |
24.22 |
14 |
50 |
14 |
3/4" |
35 |
26.87 |
26.57 |
27.40 |
19 |
50 |
14 |
1" |
44 |
33.66 |
33.27 |
30.58 |
24 |
59 |
11.5 |
1-1/4" |
54 |
42.42 |
42.04 |
34.75 |
32 |
61 |
11.5 |
1-1/2" |
60 |
48.56 |
48.11 |
37.93 |
38 |
72 |
11.5 |
2" |
73 |
60.63 |
60.17 |
41.10 |
50 |
77 |
11.5 |
2-1/2" |
88 |
73.38 |
72.85 |
47.45 |
61 |
97 |
8 |
3" |
105 |
89.31 |
88.70 |
50.63 |
73 |
104 |
8 |
4" |
132 |
114.80 |
114.10 |
60.15 |
96 |
116 |
8 |
|
