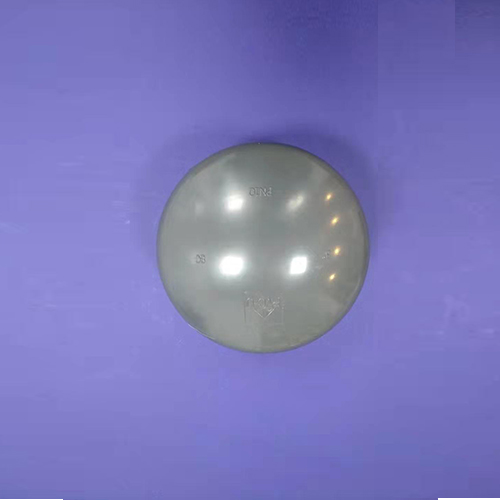

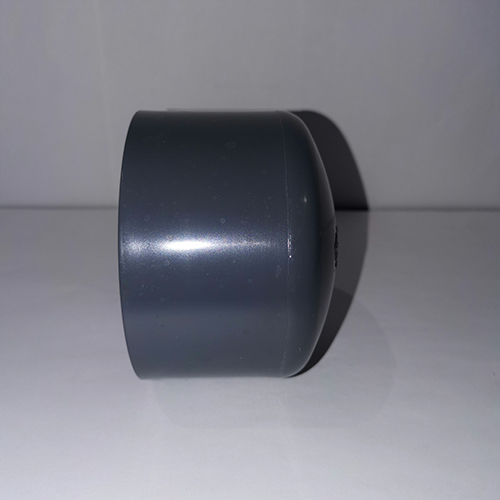

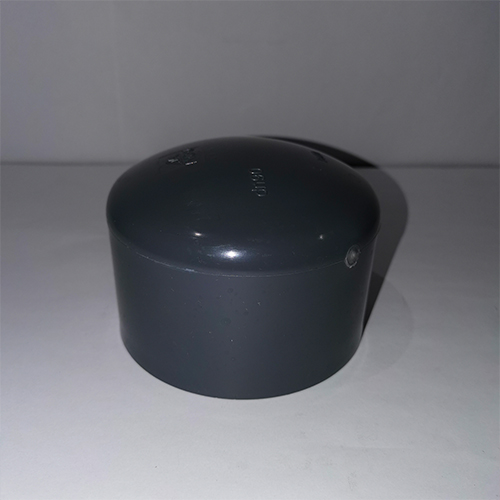

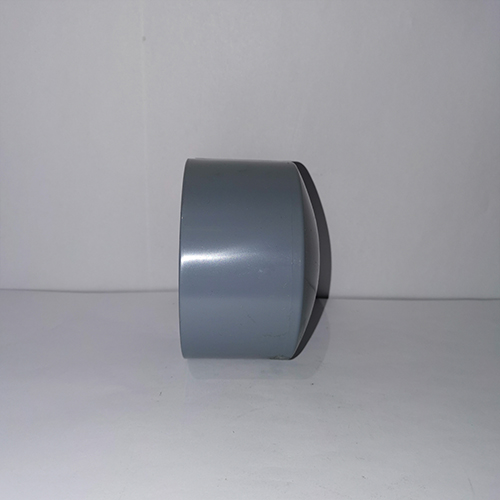

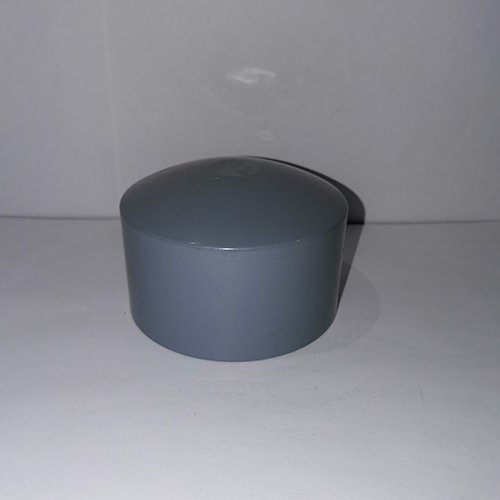

管帽
来源：本站 作者：admin 栏目：环琪塑胶管件 发布时间：2020-01-03 07:47:39
管帽 SCH80产品数据 Outside Dia Socket Type Structural Diameter Size Do d1 d2 I L 1/2 30.00 21.54 21.23 24.22 31.10 3/4 36.83 26.87 26.57 27.40 35.20 1 45.5 33.6 33.27 30.58 40.50 1-1/4 55.00 42.42 42.04 34.75 46.06 1-1/2 61.50 48.56 4...
管帽
|
|
|
产品数据
|
|
Outside Dia
|
Socket Type
|
Structural Diameter
|
|
Size
|
Do
|
d1
|
d2
|
I
|
L
|
|
1/2"
|
30.00
|
21.54
|
21.23
|
24.22
|
31.10
|
|
3/4"
|
36.83
|
26.87
|
26.57
|
27.40
|
35.20
|
|
1"
|
45.5
|
33.6
|
33.27
|
30.58
|
40.50
|
|
1-1/4"
|
55.00
|
42.42
|
42.04
|
34.75
|
46.06
|
|
1-1/2"
|
61.50
|
48.56
|
48.11
|
37.93
|
50.33
|
|
2"
|
75.00
|
60.63
|
60.17
|
41.10
|
56.00
|
|
2-1/2"
|
89.00
|
73.38
|
72.85
|
47.45
|
65.50
|
|
3"
|
106.00
|
89.31
|
88.70
|
50.63
|
70.00
|
|
4"
|
133
|
114.80
|
114.10
|
60.15
|
82.26
|
|
|
产品数据
|
DE
|
Do
|
I
|
L
|
|
20
|
26
|
16
|
22
|
|
25
|
32
|
19
|
26.5
|
|
32
|
41
|
22
|
30.5
|
|
40
|
50.5
|
26
|
36.5
|
|
50
|
63
|
31
|
44.5
|
|
63
|
78.5
|
38
|
54
|
|
75
|
93
|
44
|
65
|
|
90
|
112
|
51
|
75
|
|
110
|
128.5
|
61
|
86
|
|
140
|
163
|
76
|
105
|
|
160
|
186
|
86
|
122
|
|
225
|
261
|
119
|
170
|
|
250
|
290
|
131
|
188
|
|
315
|
364
|
164
|
230
|
|
